Products

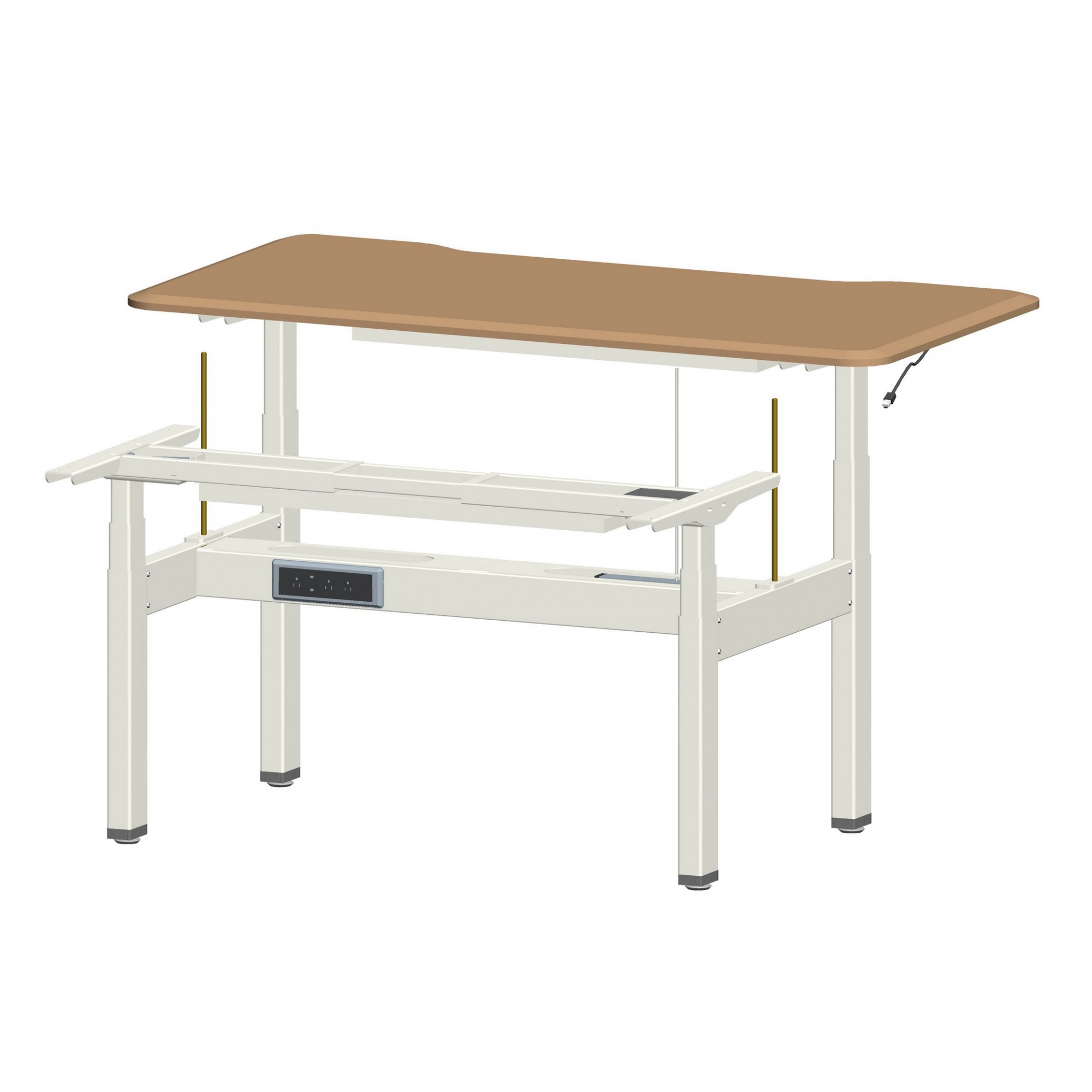

Height adjustable standing desk frame

motor desk frame motorised height adjustable standing desk frame motorised standing desk frame sit stand electric desk frame motorized standing desk base motorized standing desk frame standing desk electric frame

motor desk frame motorised height adjustable standing desk frame motorised standing desk frame sit stand electric desk frame motorized standing desk base motorized standing desk frame standing desk electric frame

    Product Type:   SD-17F

    Function: Back to Back Desk Frame help people Face-to-Face communication at work.

    Description: Motor Desk Frame with MDF Cabinets for Multi-functional use.

    The maximum load capacity of this height adjustable standing desk frame can reach 120 kg. The all-steel table frame is durable and resistant to compression and deformation. The height range of the table frame is 1072-1870mm. The power of the double motor is greater, the lifting speed is higher, and the speed can reach 37.5. mm/s.The MOQ is 20 pieces, welcome to inquire.

  • Parameters

    Product Type:   SD-17F

    Function: Back to Back Desk Frame help people Face-to-Face communication at work.

    Description: Motor Desk Frame with MDF Cabinets for Multi-functional use.

    The maximum load capacity of this height adjustable standing desk frame can reach 120 kg. The all-steel table frame is durable and resistant to compression and deformation. The height range of the table frame is 1072-1870mm. The power of the double motor is greater, the lifting speed is higher, and the speed can reach 37.5. mm/s.The MOQ is 20 pieces, welcome to inquire.

This Height Adjustable Standing Desk Frame has the features as below:

● Super Silence: Quiet operation, for a more comfortable work environment.

● Long Life: Based on precise worm gear and worm shaft design, our desks have passed 45,000 cycles in the endurance test with 95kg loaded.

● Strong Capacity: Motorised standing desk frame can lift Max.120kg very steady.

● Very Steady: No problem sitting on half side by balance precise smart control.

● Precise control: Every MM of moving is very accurate.

● Duty Cycle: 50% Max. 1minutes on / 1minutes off.

● Anti-Collision and Height Memory: More safety and convenient with soft start / stop.

● Certificates: CE, ROSH, UL, FCC, CNAS, BIFMA, etc.

● Optional: Cable tray, Power outlet, Screen, Monitor mounting arm, etc.



Specification:

Column Stage

3

Motor Number

2

Column Topology

Upright

Height Adjustable Range

600-1250mm

Frame Adjustable Range

1072-1870mm

Stroke

650mm

Speed

37.5mm/s

Noise

≤45dBA

Max. Load

110KG

Use Environment

-30℃~+50℃

Colour

Silver Grey

Handset

4 memory button




Application:

● Office Furniture: sit stand electric desk frame; motorized standing desk base;

● Home Furniture: motorized standing desk frame;

● Living Furniture: standing desk electric frame;

● E-sports Furniture: Motorized Height Adjustable Standing Desk Frame;



Our Services:

Assembly Instruction and Operating Instruction

Online Guide

Warranty: Warranted against manufacturing defects for 5 years.

Small order can be acceptable.



FAQ


Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.



Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.
